Female DIP USB Connector PCB Mount Socket RVS USB3.0 Type A STD 9 Pin

Name: Female DIP USB Connector PCB Mount Socket RVS USB30 Type A STD 9 Pin
Brand: Jinze
Price: 1 USD

Cheap Female DIP USB Connector PCB Mount Socket RVS USB3.0 Type A STD 9 Pin for sale

Brand Name : Jinze

Model Number : UB57B-9LA2S-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1200pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Housing : PA9T UL94V-0

Color : Blue 300C

Gender : Receptacle (Female)

Application : Power, PCB, Microwave,Computor

Number of Contacts : 9 Pins

Number of Ports : 1 Port

Current Rating : 1.8 AMP

Mounting Angle : Right Angle

Mounting Style : PCB Mount

ODM/OEM : Accepted

Factory Pack Quanity : 280pcs per Reel

Contact Now

Specifications:

Housing	PA9T UL94 V-0 Blue 300C
Contact	C5210 (T=0.20mm)
Shell	SUS304(T=0.30mm)
Contact Plating	Au 1u" on Contact Area
	Matte Tin 80u" Min Plated on Solder Tails
	Ni 50u" Min Plated Over all
Shell Plating	Nickel(50u" Min.) Plating Overall
Contact Current Rating	1.8A For Pin1& 4
	0.25A for other contacts
Voltage Rating	30V DC/AC Max.
Contact Resistance	30mΩ Max. initial For Vbus & GND Contacts
	50mΩ Max Initial for All other Contacts
Insulation Resistance	100mΩ Min. at DC 500V
Dielectric Withstanding Voltage	100VAC R.M.S
Insertion Force	Initial: 1.02Kgf-2.25Kgf
	After Test: 0.8Kgf-2.25Kgf
Extraction Force	Initial: 1.02Kgf-2.25Kgf
	After Test: 0.8Kgf-2.25Kgf
Operating Temperature	-20ºC~+85ºC
Durability	5000 Cycles

Images:

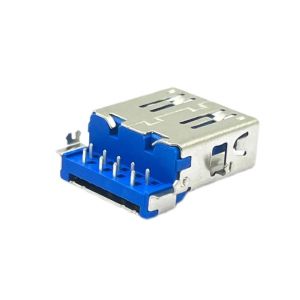

Female DIP USB Connector PCB Mount Socket RVS USB3.0 Type A STD 9 Pin

UB57B-9LA20-RHA.pdf, if you need the Drawing, pls download it

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
